Snorkel 660SJ all terrain

660SJ ALL TERRAIN

  • Max. working height: 22.1m
  • Platform capacity (SWL): 272kg
  • Stowed Height: 2.61m
  • Weight: 13,750kg

Download Specifications (PDF)

Download Dual Envelope Lifting Capacities (PDF)

Snorkel GuardTM Brochure (PDF)

Request a Quote

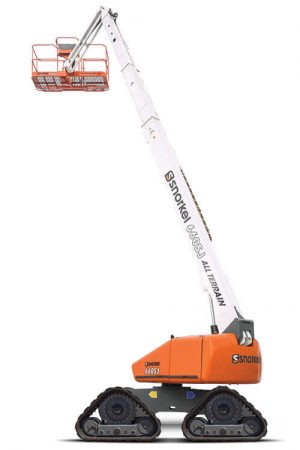

The Snorkel 660SJ All Terrain telescopic boom lift offers enhanced traction. Turf-friendly independent rubber tracks can traverse uneven terrain without sinking into loose sediment, soft soil, sand, snow and mud. Designed with full-time active oscillating axle, the 660SJ All Terrain delivers smooth performance and low ground pressure on sensitive environments.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • 1.67m 135º jib
  • Oscillating axle (203mm of oscillation)
  • Hydraulic platform rotation
  • Hydraulic oil cooler
  • 4-track drive
  • All proportional controls
  • Swing-out engine tray
  • Motion alarm
  • Horn
  • Hour meter & on-board diagnostics display
  • Power line to platform
  • 5º tilt alarm & cut out
  • Hour meter & on-board diagnostics display
  • DC emergency operation
  • Tri-entry platform
  • Flashing amber light
  • Platform overload system
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

22.1m
Max Platform Height

22.1m
Max Working Outreach

17.8m
Platform Size

2.44m x 0.91m
Overall Width

2.46m
Transport Width

2.24m
Transport Length

8.3m
Overall Length

10.1m
Transport Height

3.0m
Stowed Height

2.61m
Ground Clearance

444mm
Platform Capacity (SWL) Unrestricted

272kg
Platform Capacity (SWL) Restricted

454kg
Max Drive Height

20.1m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

5.6 km/h
Max Drive Speed (elevated)

0.96 km/h
Jib Length

1.67m
Jib Arc

135º (+70º/-65º)
Platform Rotation

150º
Superstructure Rotation (continuous)

360º
Tailswing

1.2m
Raise/Lower Time

50/50 seconds
Gradeability

45%
Inside Turning Radius

5.94m
Outside Turning Radius

8.38m
Tyres

independent rubber tracks
Controls

proportional drive, raise, slew, extend, jib and platform rotate
Drive System

4 wheel drive
Power Source

Deutz 2.9L 55kW/74hp – Tier 4 Final
Auxillary Power Unit

12V DC
Weight

13,750kg

Options

  • Special paint colors
  • Airline to platform
  • AC generator 110V/220V 2kW
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Glazier package
  • Light package
  • 10kW generator package
  • 10kW generator/welder package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

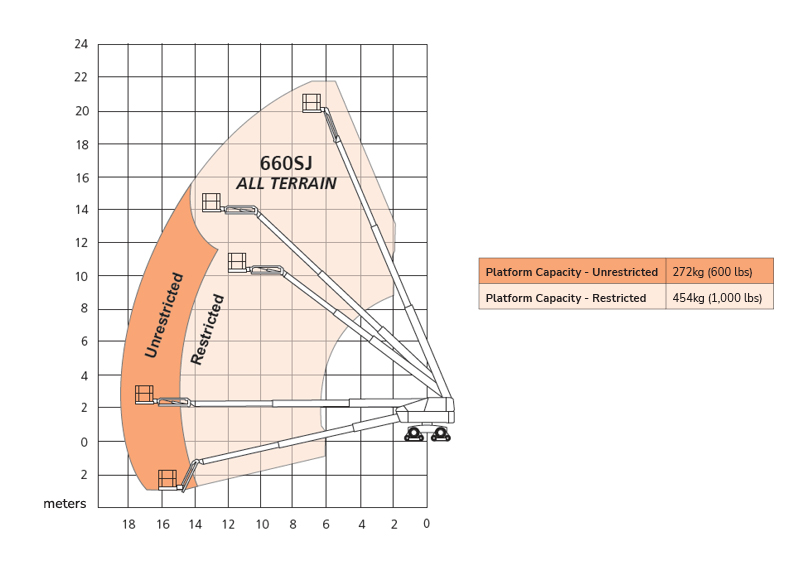

Working Envelope

Emea Metric 660sj At 72dpi

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
