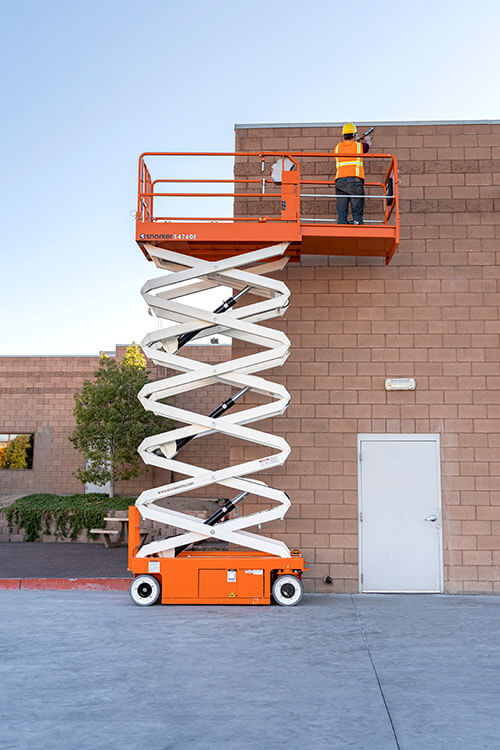

Snorkel S4740E

S4740E

  • Working height: 14.0m
  • Platform capacity: 250kg
  • Stowed height: 2.56m
  • Weight: 3,100kg

Download Specifications (PDF)

Request a Quote

The Snorkel S4740E is the only Snorkel electric scissor lift with available hydraulic and electric drive. Durable lead acid batteries provide long-lasting performance. The rugged and robust S4740E features a variable tilt system suitable for indoor and outdoor use.

Standard Features

  • Hydraulic drive
  • Roll-out deck extension with dual locks
  • Non-marking tires
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • 2 persons indoor
  • 1 person outdoor
  • Proportional controls, including descent
  • Power line to platform
  • Flashing amber light
  • Loading pendant
  • Hour meter & on-board diagnostics display
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachment points
  • Scissor stack roller slide plates (set of 2)
  • 2 year parts & labor, 5 year structural warranty
Max Working Height

14.0m
Max Platform Height

12.0m
Platform Size (stowed)

1.09m x 2.14m
Platform Size (extended)

1.09m x 3.36m
Extension Deck Length

1.21m
Overall Length (with step)

2.3m
Overall Length (without step)

2.26m
Overall Width

1.19m
Stowed Height

2.56m
Min Height (guardrails folded)

1.93m
Ground Clearance (stowed)

66mm
Ground Clearance (elevated)

19mm
Platform Capacity (SWL)

250kg
Max Drive Height

12m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

3.2km/h
Max Drive Speed (elevated)

0.6km/h
Raise/Lower Time

68 / 72 seconds
Gradeability

25%
Inside Turning Radius

0.53m
Outside Turning Radius

2.41m
Tyres

15 x 5 non-marking rubber
Controls

proportional
Drive System

2 wheel drive
Power Source

24V DC battery electric
Charger

90 – 240V, 25amp
Weight

3,251kg

Options

  • Special paint colors
  • Electric drive
  • Airline to platform
  • Aircraft bumpguard package
  • 110V AC 800W inverter
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

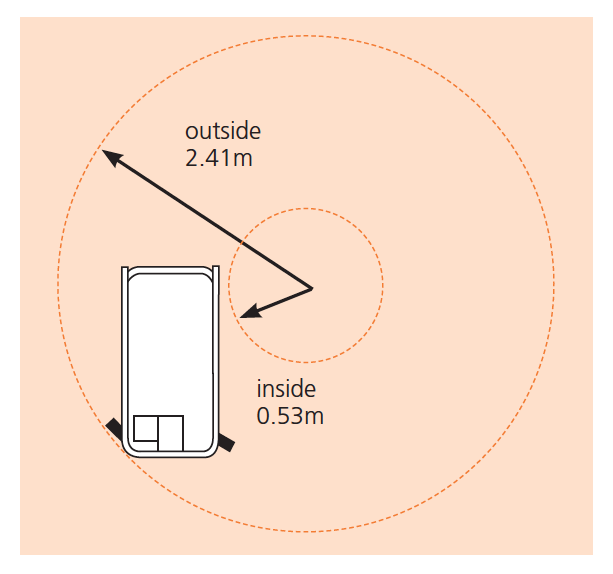

Turning Radius

S4740E Turning Radius

All Snorkel products are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Canada is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
